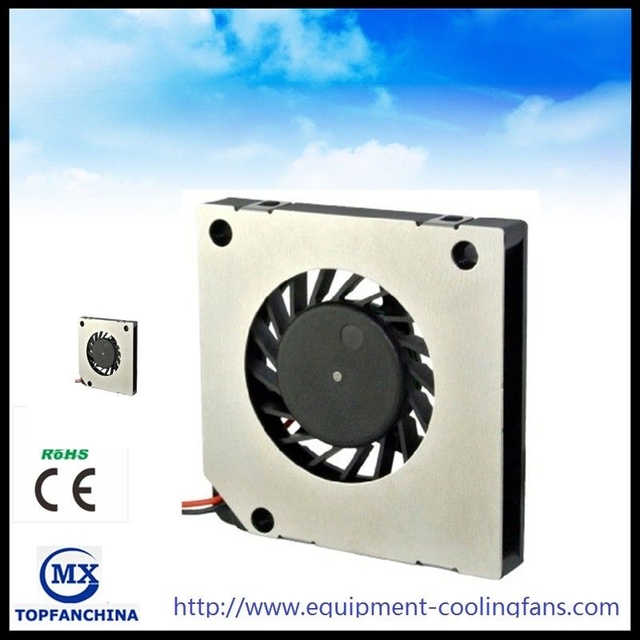

Brushless 4mm Thick Axial Electronics Cooling Fans Low Niose

Brushless 4mm Thick Axial Electronics Cooling Fans Low Niose

A: Specifications:

Model Number: MX3004ANH5

Product Name: Axial Fan

Rated Voltage (VDC): 3.3v,5.0v

Operating Voltage (VDC): 2.8 ~ 5.5

Rated Current (mA): 50 ± 10% , 75 ± 10%

Rotation Speed (RPM): 8 , 500 ± 10% ; 6 , 000 ± 10%

Air Flow (CFM): 0.89 / 0.57

Brushless axial dc fan 30mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Important Note:

Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.

Description:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● 5V DC 3.3V DC
● Axially-grooved Bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.
