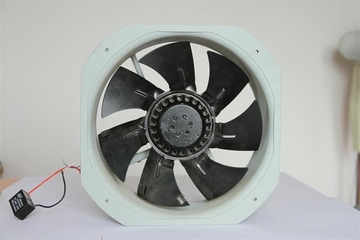

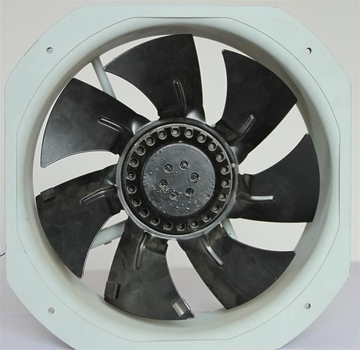

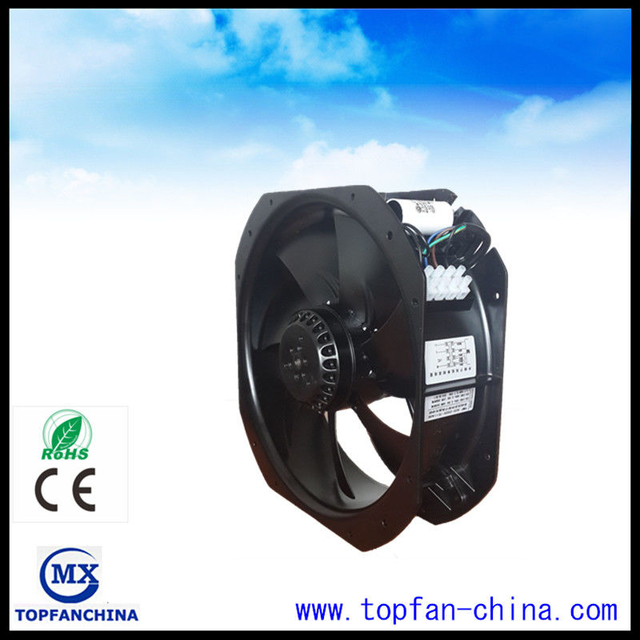

Metal Blade 220V / 380V Brushless Industrial AC Motor Fan 50Hz / 60Hz

280*280*80mm AC fan, low noise and long life expectancy, are widely used in network communications, as well as industrial production equipment, medical equipment, home appliances, etc.

Description:

220V AC FAN,used for cooling and ventilation.
Frame: Aluminum ADC-12,Painted Black
Blade:metal
Stator& Rotor:Silicon steel
Magnet Wires:Copper 1 PEW
Bobbin:PA-66 UL 94 V-0
Bearing Type:Ball Bearing

Specification

Model	MX28080ABH11
Outline Dimension	28028080mm
Rated Voltage	AC 110V
Voltage Range	AC 110V~120V
Frequency	50/60Hz
Rated Current	1.2A±10%
Power Consumption	120W±10%
Speed	2500RPM±10%
Max. Air flow	1512CFM±10%
Max. Static Pressure	154Inch-H2O
Noise Level	70dB(A)
Weight	2800g
Dielectric Strength	1800V/0.5mA/3s
Temperature Test of Run	t=<70K
Locked Rotor Protection	t=<130K
Environmental Specification	Operating Temperature:-20℃~85℃ Operating Humidity:20%~85%RH Storage Temperature:-30℃~140℃ Storage Humidity:20%~95%RH

Dimension:
