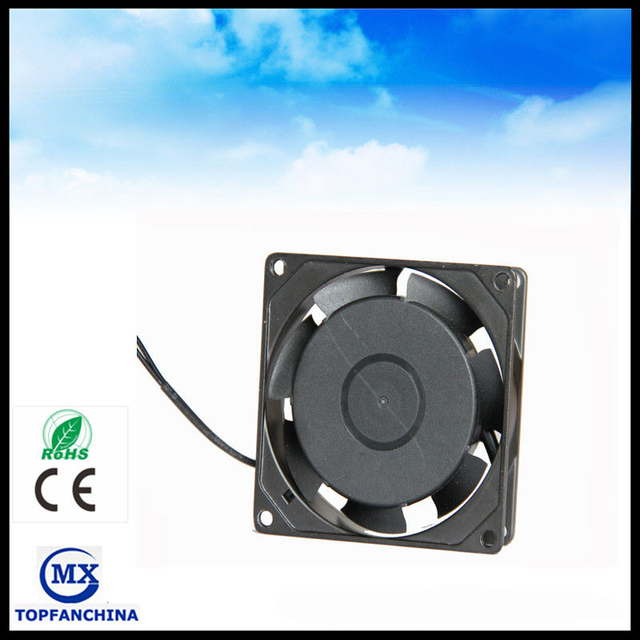

Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin
50%
OFF

Customized Small 7 Blade AC Brushless Fan Car Ventilation Fans PA-66 UL 94 V-0 Bobbin

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.103815

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   100
$ 200 save $ 100
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 100 $ 200 save $ 100
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • 110V AC Burshless Fans / 80*80*25mm AC Cooling Fans , AC Fridge Fans

    110V AC Brushless Fan 80*80*25mm, high air flow and quiet , are widely used in industrial ventilation, as well as industrial production equipment, home appliances, medical equipment etc.

    Description:

    • 110V AC FAN, used for cooling and ventilation.
    • Frame: Aluminum ADC-12, Painted Black
    • Impeller: Plastic With 7 Blades
    • Stator& Rotor: Silicon steel
    • Magnet Wires: Copper 1 PEW
    • Bobbin: PA-66 UL 94 V-0
    • Bearing Type: Ball Bearing

    Specification

    Model

    MX8025ABH11

    Outline Dimension

    80*80*25mm

    Rated Voltage

    AC 110V

    Voltage Range

    AC 100-120V

    Frequency

    50/60Hz

    Rated Current

    0.14/0.12A±10%

    Power Consumption

    11/8W±10%

    Speed

    2400/2900RPM±10%

    Max. Air flow

    2229CFM±10%

    Max. Static Pressure

    0.08/0.13Inch-H2O

    Noise Level

    24/29dB(A)

    Weight

    230g

    Dielectric Strength

    1800V/0.5mA/3s

    Temperature Test of Run

    t=<70K

    Locked Rotor Protection

    t=<130K

    Environmental Specification

    Operating Temperature:-20℃~70℃

    Operating Humidity:20%~85%RH
